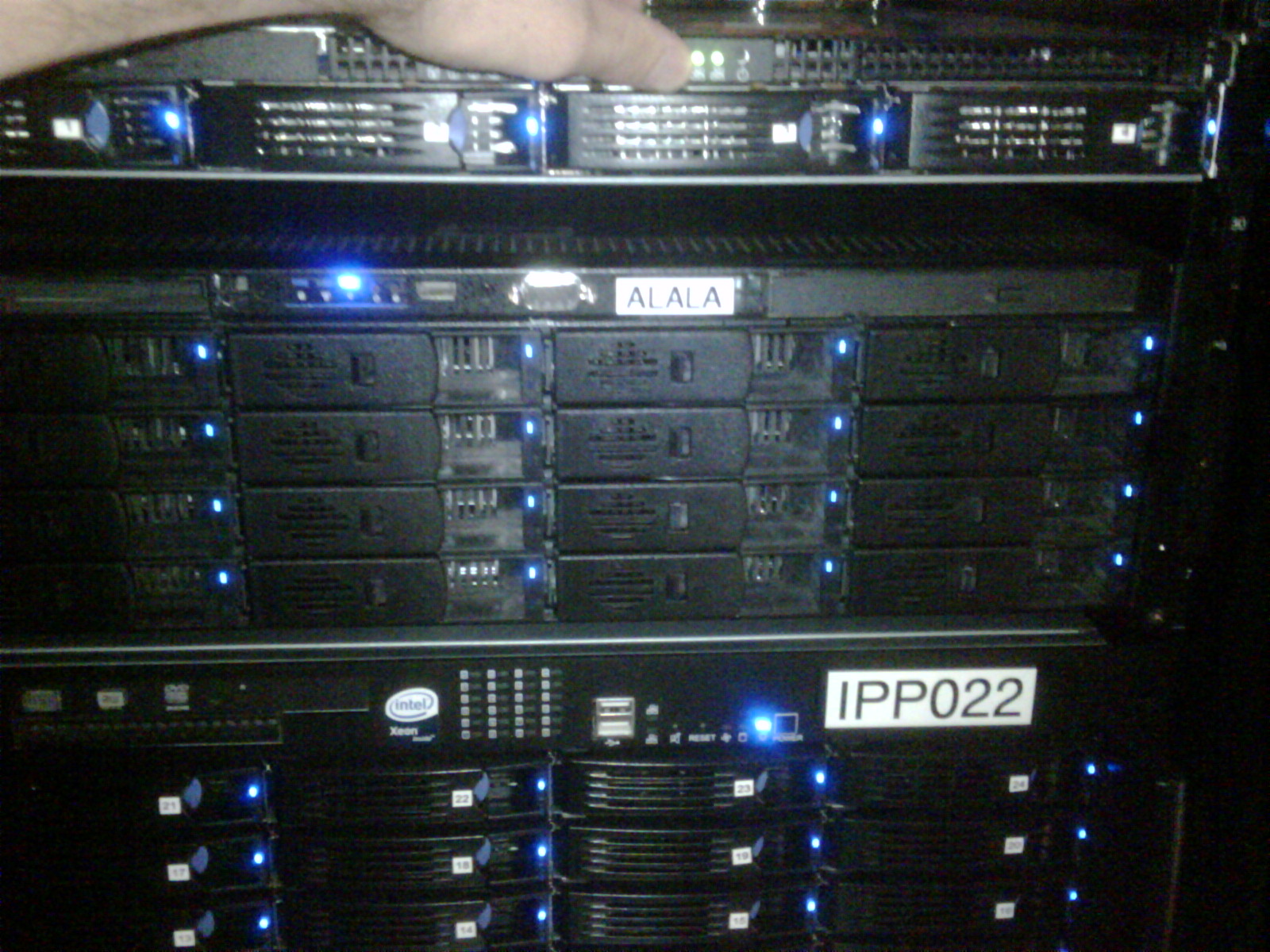

Alala has 16 disk bays arranged in a 4x4 grid. The 3ware BIOS refers to the cards as slot 1 and slot 3, which is annoyingly different from the 3dm software. The map is in the format slotX:portX and is as follows:

3ware BIOS

+-------+-------+-------+-------+
| s1:p0 | s1:p4 | s3:p0 | s3:p4 |
+-------+-------+-------+-------+
| s1:p1 | s1:p5 | s3:p1 | s3:p5 |
+-------+-------+-------+-------+
| s1:p2 | s1:p6 | s3:p2 | s3:p6 |
+-------+-------+-------+-------+
| s1:p3 | s1:p7 | s3:p3 | s3:p7 |
+-------+-------+-------+-------+

3dm2 software web interface display arrays by Controller ID 6 / 7.

This map is in the format controller_idX:portX as follows:

3DM2 Web Interface

+-------+-------+-------+-------+
| c7:p0 | c7:p4 | c6:p0 | c6:p4 |
+-------+-------+-------+-------+
| c7:p1 | c7:p5 | c6:p1 | c6:p5 |
+-------+-------+-------+-------+
| c7:p2 | c7:p6 | c6:p2 | c6:p6 |
+-------+-------+-------+-------+
| c7:p3 | c7:p7 | c6:p3 | c6:p7 |
+-------+-------+-------+-------+
