These are Heather's notes (and status) for SAS37 / ipptopsps

build of minis

This was done with minimal problems. Addstar ff/ sky had problems initially, Gene put in fixes for that. The faults that I have in the minis (only a handful of faults) are related to cluster / gpc1 problems. Rather than sort them out, I left those few exposures out. It's not complete (to ~10 exposures).

The labels and associated minis:

stage	label	mini
cam	SAS.20141118	SAS.20141118.cam
sky	SAS.20141118.rerun	SAS.20141118.sky.rerun.V2
fullforce	SAS.20141118.rerun	SAS.20141118.ff.rerun.V2
diff	SAS.20141118	SAS.20141118.diff

merge of SAS

This was done with no problems for diff, minimal problems for sky/cam/ff. First, there was a faulted sky, which reported no errors and completed on retry. I don't know how that affects the mergedvodb. Then, ff had problems to merge (related to the lensing stuff, Gene investigated and fixed). I was then able to merge ff into the mergedvodb. I redid the mergedvodb (to make absolutely certain that it's good)

Name	minis	order
SAS.20141118.diff	SAS.20141118.diff	1
SAS.20141118.V2	SAS.20141118.sky.rerun.V2	1
SAS.20141118.V2	SAS.20141118.cam	2
SAS.20141118.V2	SAS.20141118.ff.rerun.V2	3

calibration of SAS

I intend to put a definitive set of rules/scripts for this. So far, neither SAS has been calibrated. The rules should be different for each

SAS.20141118.diff

• addstar resort
• relphot -averages -update
• (gene ?? relastro? what params?)

SAS.20141118.V2

Previous SASes have been calibrated this way:

• in tools/dvodb_calib
  • run.addstar.resort
  • run.setphot
  • gene.run.relastro.part1
  • gene.run.relastro.part2
  • gene.run.relphot.3pinew

SAS 36 was calibrated by Gene this way:

{{{ for the sas calibration, see the file /data/ipp064.0/eugene/fforce.20140714/run.sascals and other files referenced in that script.

there are a few points:

• the sas images do not have ubercal zero points. I have defined a group of ubercal-tied exposures (ucal.smfs) which need to be merged into the database before running 'setphot'. I did this manually. you probably should just make a reference mini from this set to be used for this purpose
• sas does not need the koppenhoefer correction, so I have skipped that step. ditto for galaxy motion / quasar tie
• the current best boundary tree is /data/ipp064.0/eugene/relastro.20140923/tess.3pi.fits, but the version in the fforce.20140714 directory is OK for sas.
• the current best ubercal table is ucalqy_bigflat.fits in fforce.20140714

}}} Heather notes that I should do run.addstar.resort before doing gene's method

ipptopsps progress

I am nearly done with FW/FO stuff, the other batches have been done and tested.

Example batches that I tested:

• 9196 --> DO Batch
• 9200 --> DF Batch
• 9065 --> ST Batch
• 9067 --> P2 Batch
• 9192 --> OB Batch

I opened each batch in topcat and checked that the columns were mostly sensible and investigated 0's or -999s as necessary

DO Batch

• DiffObject
  • skycellID = -1 (not sure what it should be)
  • ra/dec err = -999
  • qfPerfect not by filter (H: need to fix)
  • ng/nr/ni/nz/ny = 0 (H: need to investigate)

DF Batch

• DiffMeta
  • magSat = 0. (???)
• DiffToImage
  • has 60 chips... (H: needs to select only the chips , see how Stacks do this)
• DiffDetection
  • telluricExt = 0 (this is in the dvo)
  • momentM3*/M4* = -999 (not in cmf)
  • appFillF = -999 (not in cmf)

P2 Batch

• FrameMeta (ok!)
• ImageMeta
  • magSat =0
  • completMag =0
  • psfModelID = -999
• Detection
  • posAngle = -999
  • extNSigma = -999 (H: I put this in here, but do we calculate it for camera?)

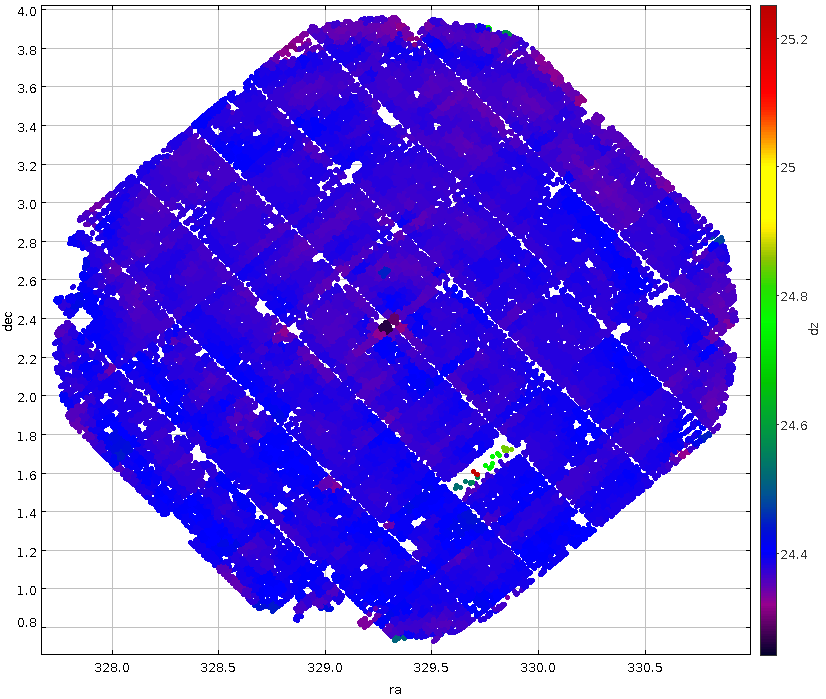

  • zp changes in a funny pattern (it looks like each chip is cut into 4 quarters, each quarter a different zp)
• psfMajorFWHM = -999
• psfMinorFWHM = -999
• psfCore = -999
• apFlux/apFluxErr/appFillF = 0

OB Batch

• ObjectThin
  • nStackObjectRows = 0 (not sure if this is just for this batch or for all)
• MeanObject (ok!)

ST Batch

(this batch was a lucky batch that only had one filter (near the edge) - so I only checked z filter)

• StackMeta
  • magSat, completMag, astroScat,photoScat, nAstro, nPhoRef, calibmodnum = -999
• StackObjectThin
  • bestDetection = -999
• StackObjectAttributes
  • bestDetection = -999
  • zExtNSigma = -999
• StackModelFitExp
  • stackDetectRowID = -999
  • bestDetection = -999
  • zexpRadiusErr, zExpAbErr, zExpPhiErr, zExpCf = -999
• StackModelFitDev
  • stackDetectRowID = -999
  • bestDetection = -999
  • zDevRadiusErr, zDevAbErr, zDevPhiErr, zDevCf = -999
• StackModelFitSer
  • stackDetectRowID = -999
  • bestDetection = -999
  • zSerRadiusErr, zSerAbErr, zSerPhiErr, zSerCf = -999
• StackPetrosian
  • stackDetectRowID = -999
  • bestDetection = -999
• StackApFlx
  • stackDetectRowID = -999
  • bestDetection = -999
• StackApFlxEGUnc
  • stackDetectRowID = -999
  • bestDetection = -999
  • apertures 6-10 unfilled
• StackApFlxEGCon6
  • stackDetectRowID = -999
  • bestDetection = -999
  • apertures 6-10 unfilled
• StackApFlxEGCon8
  • stackDetectRowID = -999
  • bestDetection = -999
  • apertures 6-10 unfilled

Things I still need to fix

• number of apertures (from 10 to 9)
• aperture metadata
