I've compared the 816 processed images from the July 2009 data release to SDSS to get zero points for each image. For y band I fit y_{PS} - z_{SDSS} versus i_{SDSS}-z_{SDSS} and got a slope of -0.247. Using this I made a simulated y-band magnitude for each SDSS star as y_{SDSS-sim} = z_{SDSS}-.247*(i_{SDSS}-z_{SDSS}), assuming that stars of zero i-z color should have zero z-y color. I used the resulting simulated y-band magnitudes to compute the PS zero points.
See PS1_depth for magnitude histograms and zpt_variation_july09 for visual representations of the chip-to-chip zero point variations.
The summary table is:
| filter | zero point | FWHM | DRM zero point |
| g | 24.58 | ~.06 | 24.90 |
| r | 24.80 | ~.06 | 25.15 |
| i | 24.74 | ~.05 | 25.00 |
| z | 24.26 | ~.05 | 24.63 |
| y | 23.41 | ~.05 | 23.03 |

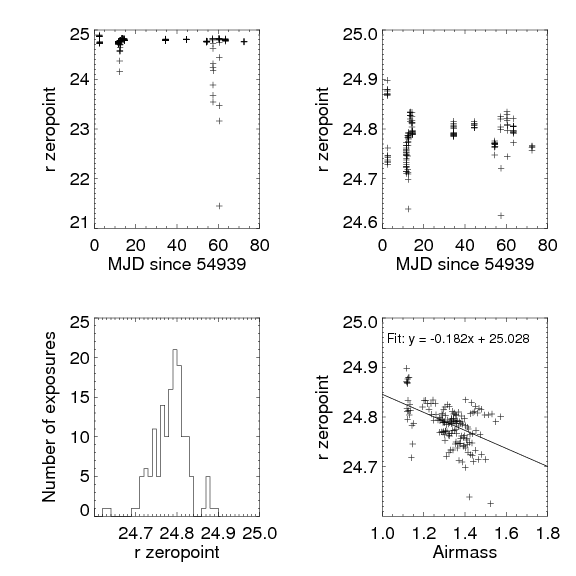

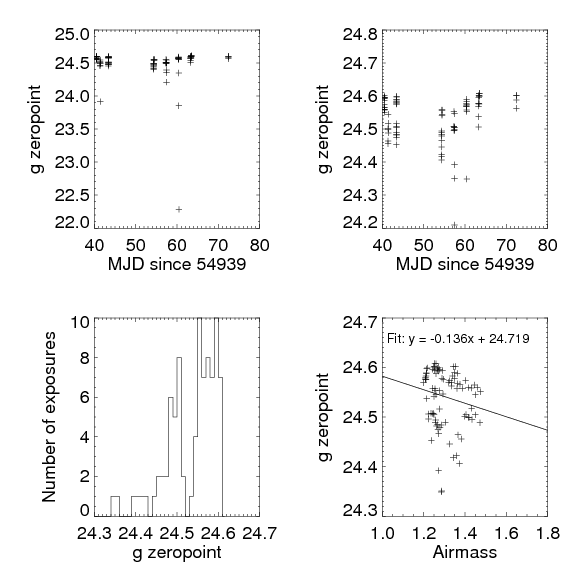

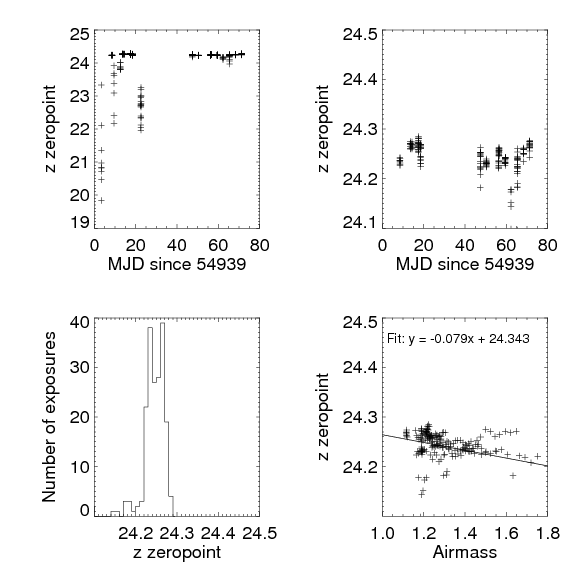

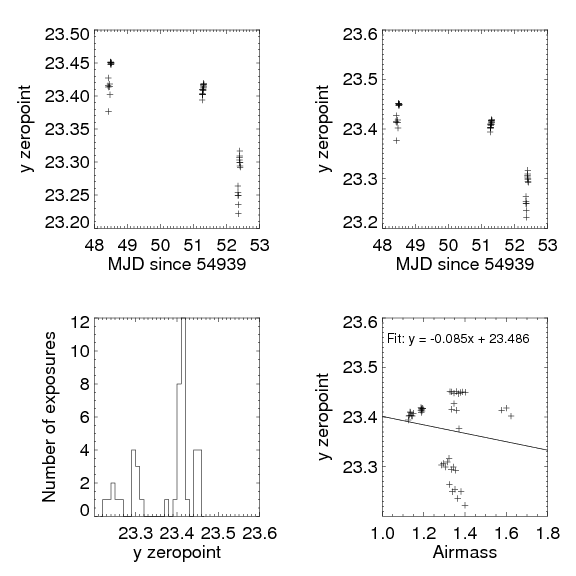

I'm just pulling these zero points and FWHM by eye off the following plots, looking for the good photometric clusters of points.
The zero points are well-behaved enough that we can see the effects of atmosphere. We get airmass extinction terms:
| filter | k_{PS} | k_{SDSS} |
| g | .136 | .17 |
| r | .182 | .10 |
| i | .122 | .06 |
| z | .079 | .06 |
| y | .085 | --- |
Obviously there is a lot of uncertainty in the values I've given, and I haven't been very careful. However, it is nice to see that they agree vaguely.

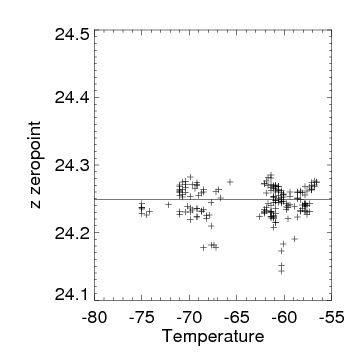

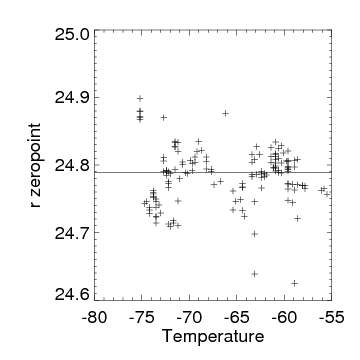

The zero points have negligible temperature dependance:
The straight lines through the data are arbitrary lines I've added to make looking for deviations from flatness easier; temperature and zero point look awfully uncorrelated.
Attachments (10)
- zptplotsg.png (31.5 KB ) - added by 17 years ago.
- zptplotsi.png (35.3 KB ) - added by 17 years ago.
- zptplotsr.png (31.4 KB ) - added by 17 years ago.
- zptplotsy.png (29.7 KB ) - added by 17 years ago.
- zptplotsz.png (32.4 KB ) - added by 17 years ago.
- zptplotstempg.png (10.7 KB ) - added by 17 years ago.
- zptplotstempi.png (13.5 KB ) - added by 17 years ago.
- zptplotstempr.png (11.9 KB ) - added by 17 years ago.
- zptplotstempz.png (12.1 KB ) - added by 17 years ago.
- zptplotstempy.png (9.5 KB ) - added by 17 years ago.
Download all attachments as: .zip
